产品描述：
★额定温度：70℃
★额定电压：300V
★根据：DIN VDE 0281
★多股裸铜导体
★颜色编码的无铅聚氯乙烯绝缘
★无铅PVC外套
★应用：电源线，适用于室内小型电器

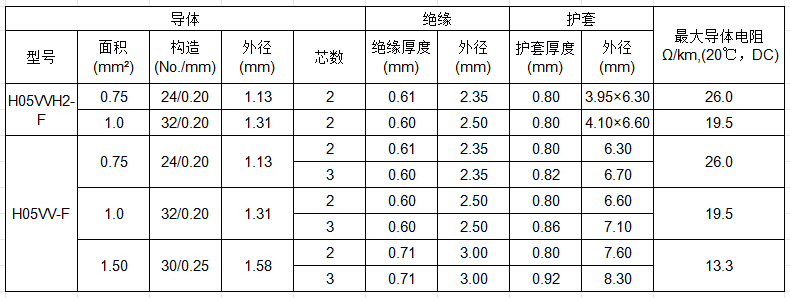

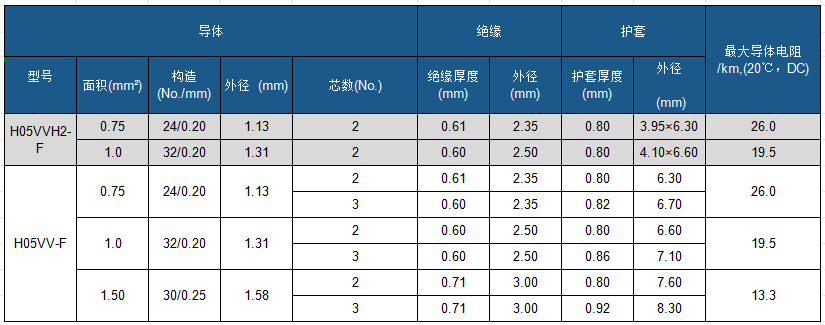

| AWG/No.of COND | Cores | Conductor | Insulation | Jacket | Maximum Resistance at 20℃ Ω/km | ||||
| Cross Section mm² | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |||
| H03VVH2-F | 2 | 0.75 | 42/0.147 | 1.10 | 0.54 | 2.17 | 0.63 | 3.55×5.60 | 26.00 |
| H05VV-F | 2 | 0.75 | 24/0.2 | 1.13 | 0.65 | 2.43 | 0.82 | 6.50 | 26.00 |
| H05VV-F | 3 | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 1.07 | 7.25 | 26.00 |
