产品描述：
★额定温度：80℃
★额定电压：30V
★参考标准：UL Subject 758，UL1581和CSA C22.2 NO.210.2
★镀锡或裸露，多股绞线，表面涂层，外涂层铜线或实心铜导体铜线，最小50 AWG
★颜色编码的无铅PVC或SR-PVC绝缘
★绝缘厚度均匀，易于剥离和切割
★通过UL VW-1＆CSA FT1垂直火焰测试
★提供超精细版本
★应用范围：用于电子电气设备的内部布线以及便携式PC的电源适配器

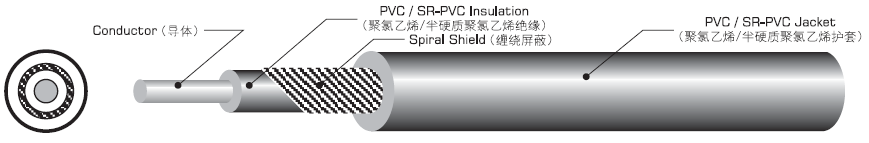

| Conductor | Insulation | Spiral Shield | Jacket | Maximum Resistance at 20 ℃ Ω/km | |||||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | No./mm | Nom.Dia | Nom. Thick. mm | Nom.Dia. mm | |
| 36 | 7/0.050 | 0.15 | 0.15 | 0.45 | - | - | - | - | 1490 |
| 34 | 7/0.065 | 0.195 | 0.15 | 0.5 | - | - | - | - | 908 |
| 32 | 7/0.08 | 0.24 | 0.23 | 0.70 | - | - | - | - | 597 |
| 30 | 7/0.1 | 0.30 | 0.30 | 0.90 | 28/0.1 | 1.10 | 0.35 | 1.80 | 354 |
| 30 | 7/0.1 | 0.30 | 0.20 | 0.70 | - | - | - | - | 354 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 28/0.1 | 1.10 | 0.35 | 1.80 | 223 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | - | - | - | - | 223 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | - | - | - | - | 139 |
| 24 | 7/0.2 | 0.6 | 0.25 | 1.10 | - | - | - | - | 88.9 |
| 22 | 7/0.16 | 0.76 | 0.32 | 1.40 | 37/0.12 | 1.64 | 0.58 | 2.80 | 57.5 |
| 22 | 17/0.16 | 0.76 | 0.25 | 1.25 | - | - | - | - | 57.5 |
| 20 | 26/0.16 | 0.94 | 0.43 | 1080 | 57/0.1 | 2.00 | 0.56 | 3.10 | 34.6 |
| 18 | 65/0.127 | 1.18 | 0.30 | 1.78 | 47/0.12 | 2.02 | 0.59 | 3.20 | 23.3 |
| 16 | 51/0.18 | 1.52 | 0.32 | 2.15 | 54/0.12 | 2.39 | 0.61 | 3.60 | 15.1 |
