产品描述：
★额定温度：80℃或90℃或105℃
★额定电压：300V
★参考标准：UL Subject 758，UL1581和CSA C22.2 NO.210.2

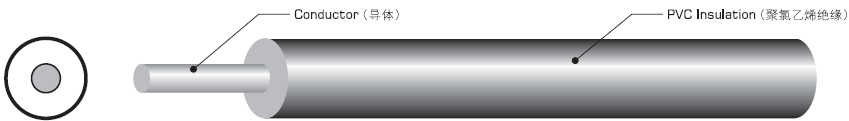

★镀锡或裸露，绞合或实心铜导体，30-10 AWG
★颜色编码的无铅聚氯乙烯绝缘
★绝缘厚度均匀，易于剥离和切割
★通过UL VW-1＆CSA FT1垂直火焰测试
★应用：用于电器和电子设备的内部布线
| Conductor | Insulation | Maximum Resistance at 20 ℃ Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 139 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 57.5 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 9.2 |
