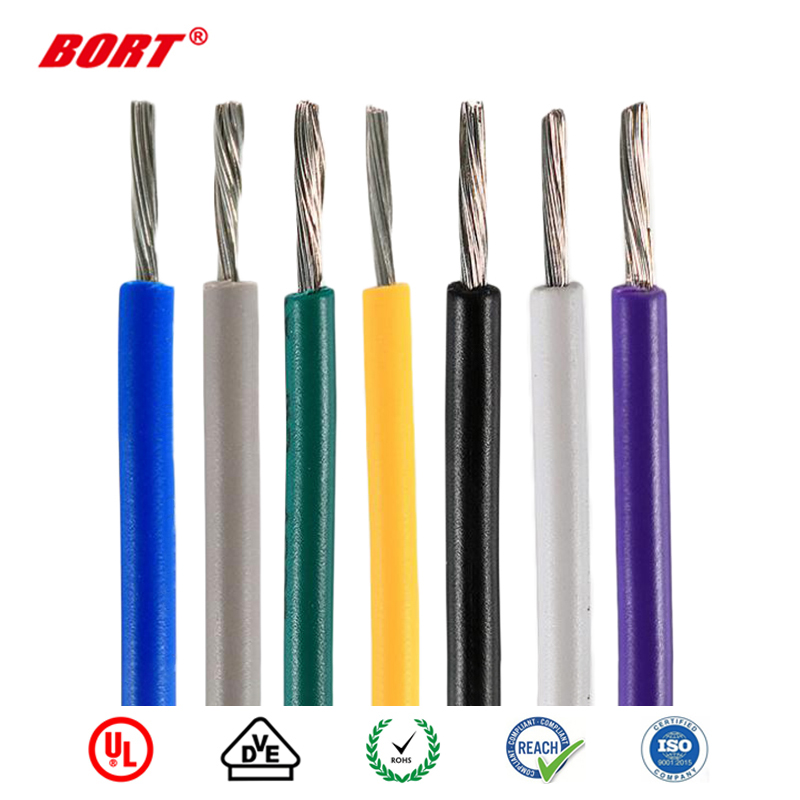

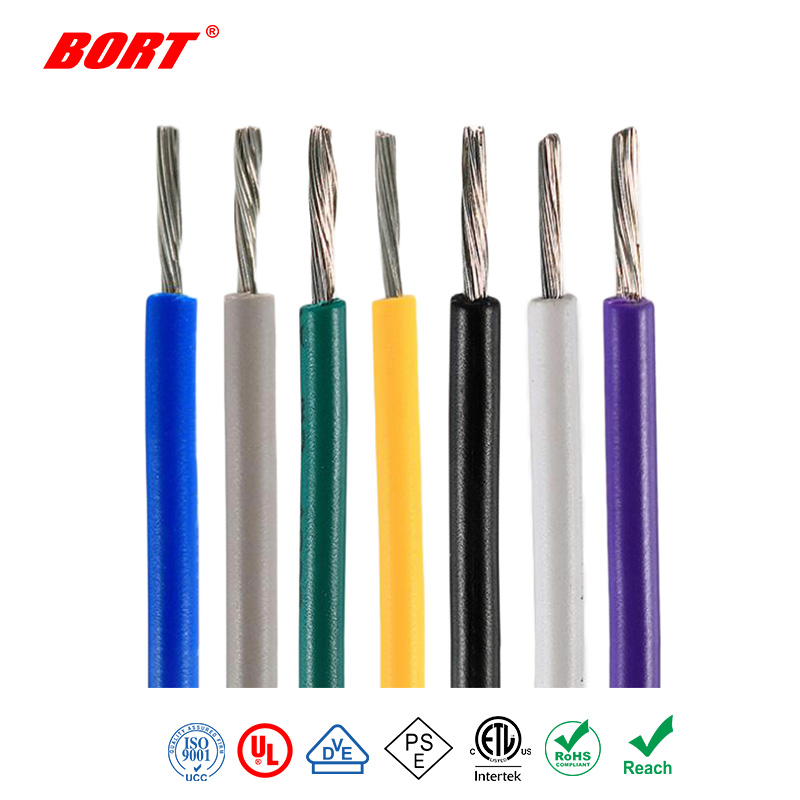

产品描述
★额定温度：80℃
★额定电压：300V
★根据：UL Subject758，UL1581，C22.2
★导体使用单条或绞线镀锡或裸铜32--16AWG
★PVC绝缘
★通过UL VW-1＆CSA FT1垂直火焰测试
★电线绝缘厚度均匀，易于剥线和切割
★用于家电的通用内部布线
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Diameter | Packing | |
| mm | mm | mm | m/r | Ω/km | |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 | 354.33 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 | 223.75 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 | 139.76 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 | 88.36 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 | 60.16 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 | 38.58 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 | 22.98 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 | 15.06 |
| 28 | 1/0.320 | 0.41 | 1.15 | 610 | 227.39 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 | 142.79 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 | 89.39 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 | 54.30 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 | 33.90 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 | 21.40 |
