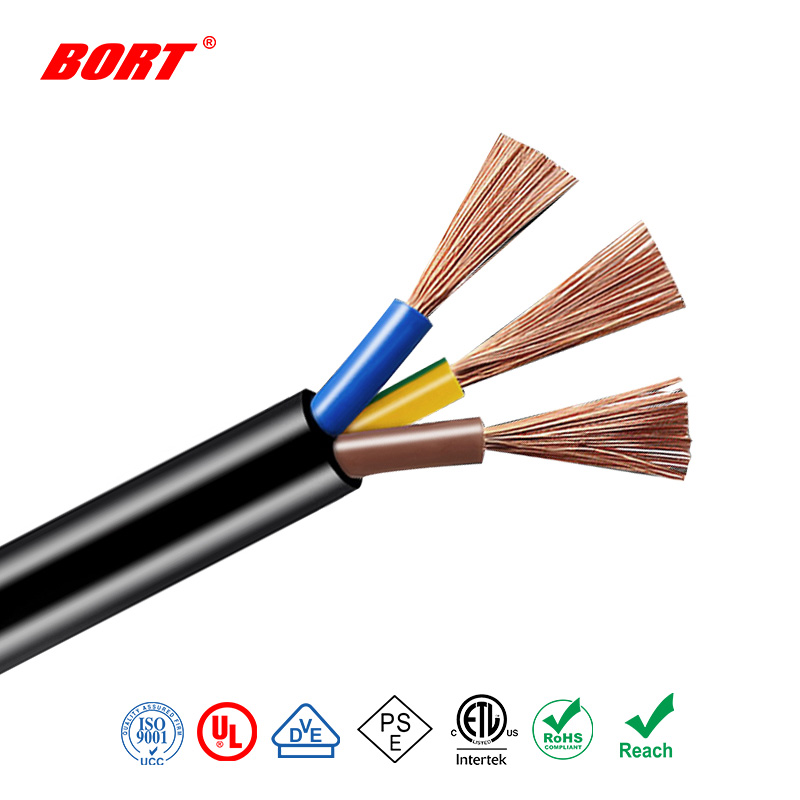

H03VV-F

H03VV-F




 Product Description:

★ Rated temperature:70℃

★ Rated voltage:300V

★ According to: DIN VDE 0281

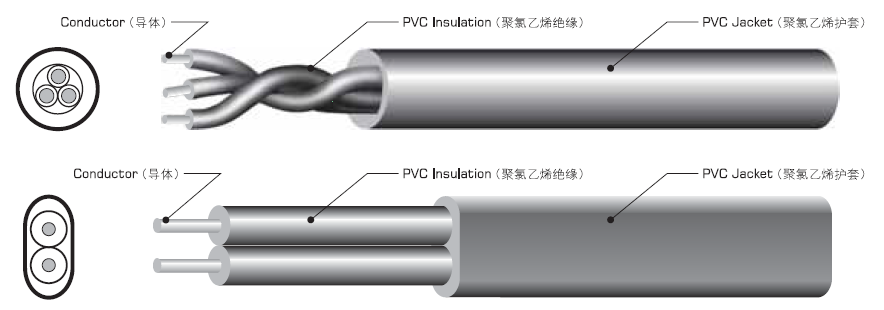

★ Stranded, bare copper conductor

★ Colour-coded lead free PVC insulation

★ Lead free PVC jacket

★ Application: Power supply wire, suitable for indoor small electrical instrument

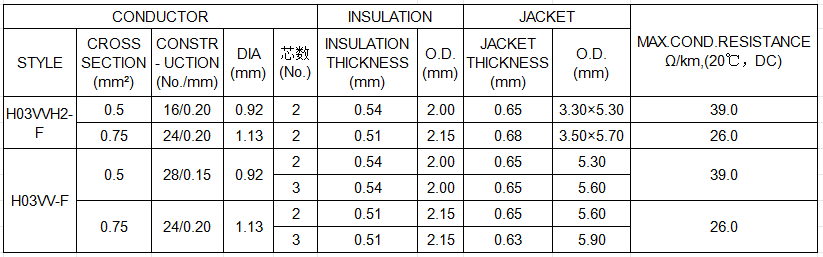

AWG/No.of CONDCoresConductorInsulationJacketMaximum Resistance at 20℃
Ω/km
Cross Section
mm²
No./mmDia.
mm
Nom. Thick.
mm
Nom.Dia.
mm
Nom. Thick.
mm
Nom.Dia.
mm
H03VVH2-F20.75 42/0.1471.10 0.54 2.17 0.63 3.55×5.6026.00
H05VV-F20.75 24/0.21.13 0.65 2.43 0.82 6.50 26.00
H05VV-F30.75 30/0.1771.11 0.62 2.35 1.07 7.25 26.00
