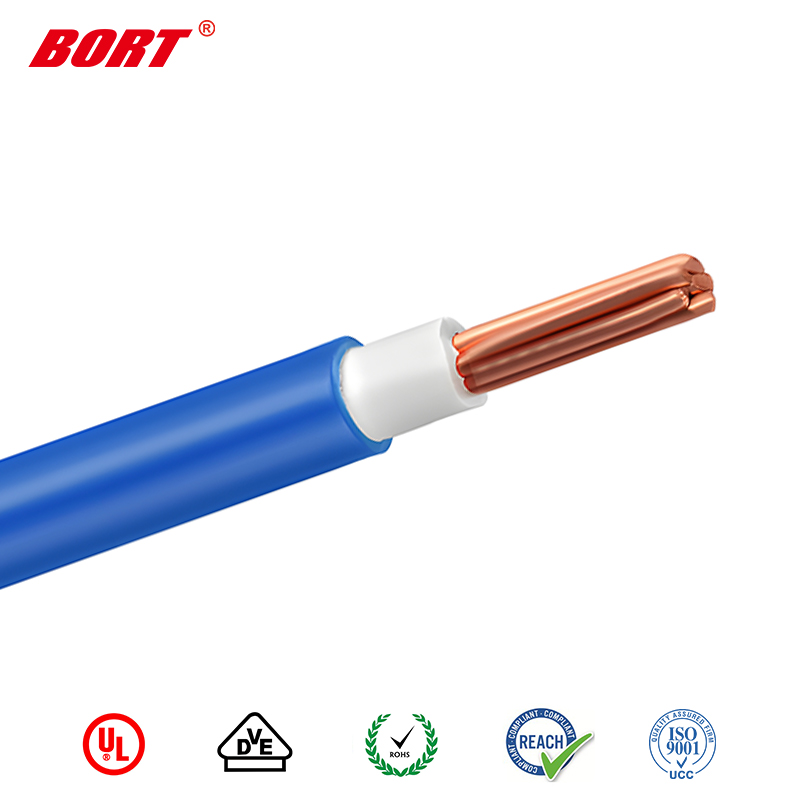

UL10800

UL10800

★ Rated temperature: 80℃ Rated voltage: 300V

★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2, IEC60754-2

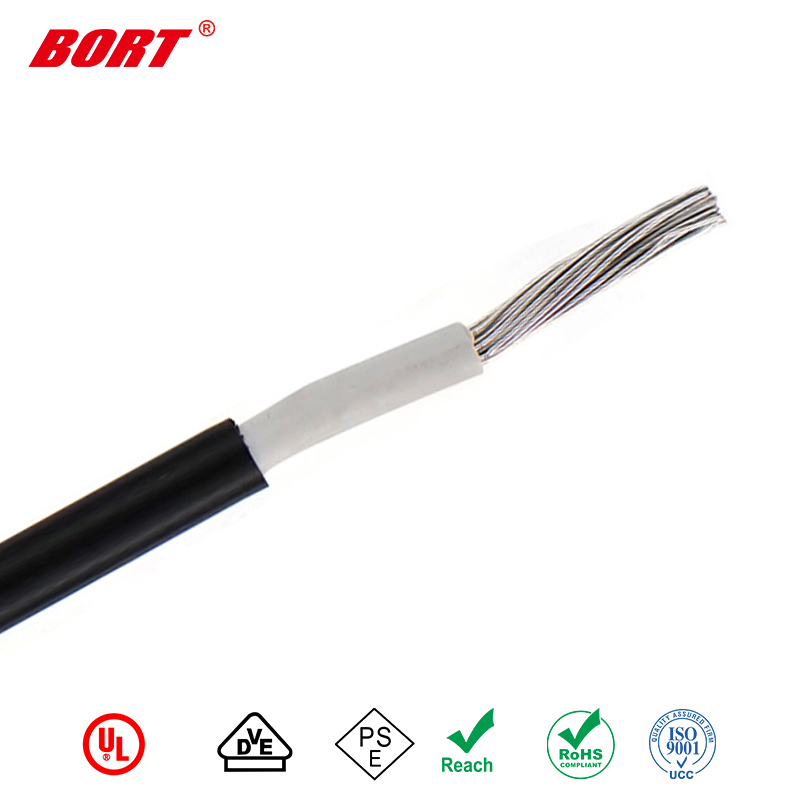

★ Tinned or bare, stranded or solid copper conductor

★ Secondary insulation thickness: from 5 to 50 mils(0.127 to 1.27mm)

★ Uniform insulation thickness to ensure easy stripping and cutting

★ FRPE insulation

★ Passes UL VW-1 & CSA FT1 vertical flame test

★ Application: For internal wiring of  electronic equipment

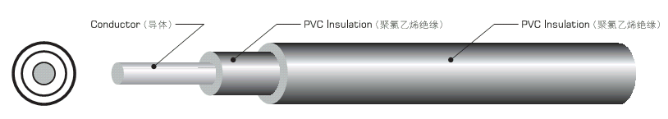

ConductorInsulationMaximum Resistance at 20 ℃
Ω/km
AWGNo./mmDia.
mm
Primary
Nom. Thick.
mm
Secondary
Nom. Thick.
mm
Nom.Dia.
mm
307/0.10.300.300.421.74354
287/0.1270.380.300.421.82223
267/0.160.480.300.421.92139
2411/0.160.610.300.422.0588.9
2217/0.160.760.300.422.2057.5
2026/0.160.940.300.422.3834.6
1841/0.161.180.300.422.6223.3
1626/0.2541.490.300.422.9315.1
