★额定温度:100℃
★执行标准:JASO D 608-92

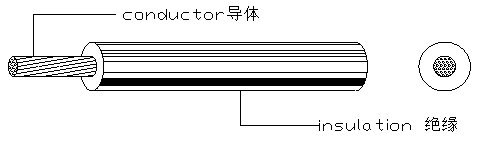

★导体规格:绞合,镀锡或裸铜丝0.5--8mm2
★交联聚氯乙烯绝缘
★绝缘厚度均匀,易剥,易裁
★耐油 耐臭氧 耐磨损
★用于汽车内部连线,具高柔软性,高机械强度,耐高温环境使用
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Diameter | Weight | |
| mm2 | No./mm | mm | mm | kg/km | Ω/km |
| 0.5F | 20/0.18 | 0.5 | 2.0 | 8.52 | 38.6 |
| 0.5 | 7/0.32 | 0.5 | 2.0 | 8.93 | 34.6 |
| 0.75F | 30/0.18 | 0.5 | 2.2 | 11.43 | 25.8 |
| 0.85 | 11/0.32 | 0.5 | 2.2 | 12.35 | 22.0 |
| 1.25F | 50/0.18 | 0.6 | 2.7 | 18.14 | 15.5 |
| 1.25 | 16/0.32 | 0.6 | 2.7 | 18.25 | 15.1 |
| 2 | 26/0.32 | 0.6 | 3.1 | 27.06 | 9.3 |
| 3 | 41/0.32 | 0.7 | 3.8 | 41.84 | 5.9 |
| 5 | 65/0.32 | 0.8 | 4.6 | 64.32 | 3.72 |
| 8 | 50/0.45 | 0.8 | 5.3 | 93.07 | 2.45 |
| Note: The "F" in the table indicates that the conductor is a soft structure | |||||
