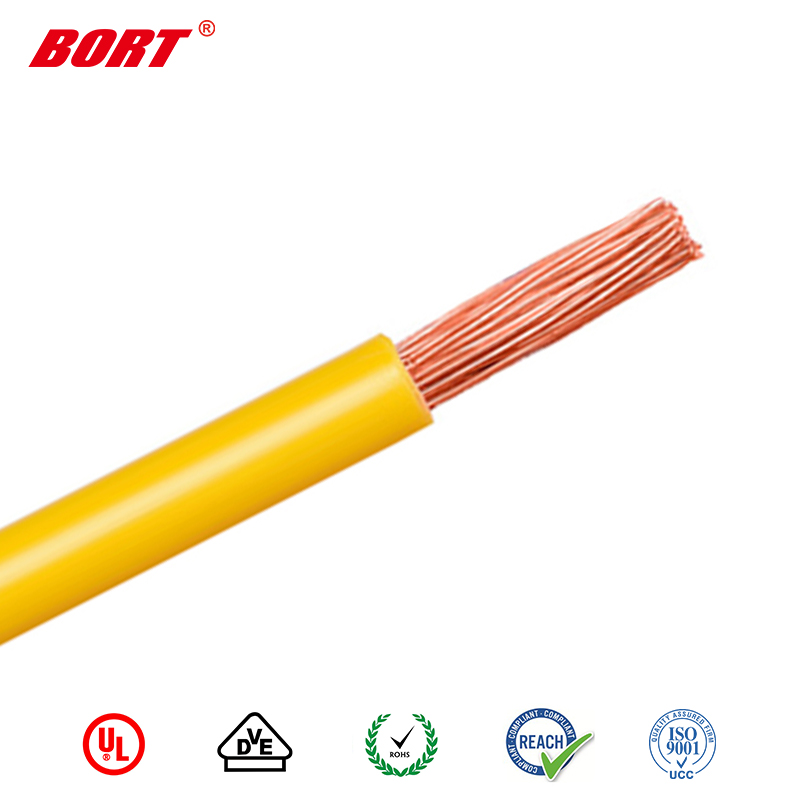

产品描述：
额定温度：100ºC
参考标准：SAE J 1128
绞合镀锡或裸铜导体20〜8AWG
聚氯乙烯绝缘，符合ROHS环保标准
通过SAE J 1128/1995 5.6火焰测试
绝缘厚度均匀，确保易于剥离和切割
汽车，摩托车和其他机动车辆用绝缘低压电线

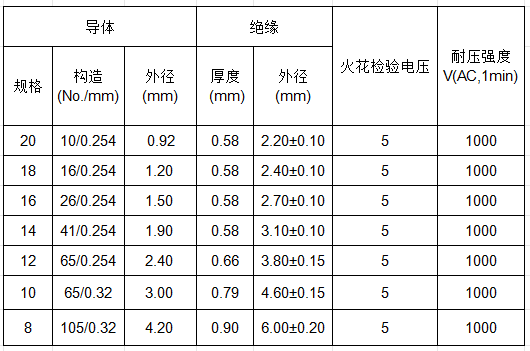

| Conductor | Finished product | DIELECTRIC | |||
| AWG | NO.of Cond | Dia. | Insulation Thick. | Overall Dia. | STRENGTH |
| No./mm | mm | mm | mm | (VAC1min) | |
| 20 | 7/0.32 | 1 | 0.58 | 2.2 | 1000 |
| 20 | 19/0.19 | 1 | 0.58 | 2.2 | 1000 |
| 18 | 19/0.23 | 1.2 | 0.58 | 2.4 | 1000 |
| 16 | 19/0.29 | 1.5 | 0.58 | 2.6 | 1000 |
| 14 | 19/0.36 | 1.8 | 0.58 | 3 | 1000 |
| 12 | 19/0.45 | 2.3 | 0.66 | 3.6 | 1000 |
| 10 | 19/0.58 | 3 | 0.79 | 4.5 | 1000 |
| 8 | 50/0.45 | 3.7 | 0.94 | 5.6 | 1000 |
