产品描述：
★ 额定温度: 90℃
★ 执行标准: DIN72551-6/1996
★ 导体规格:非正规绞合,镀锡或裸铜丝
★ 聚氯乙烯绝缘
★ 绝缘厚度均匀，易剥 易裁
★ 耐油 耐热 耐磨损

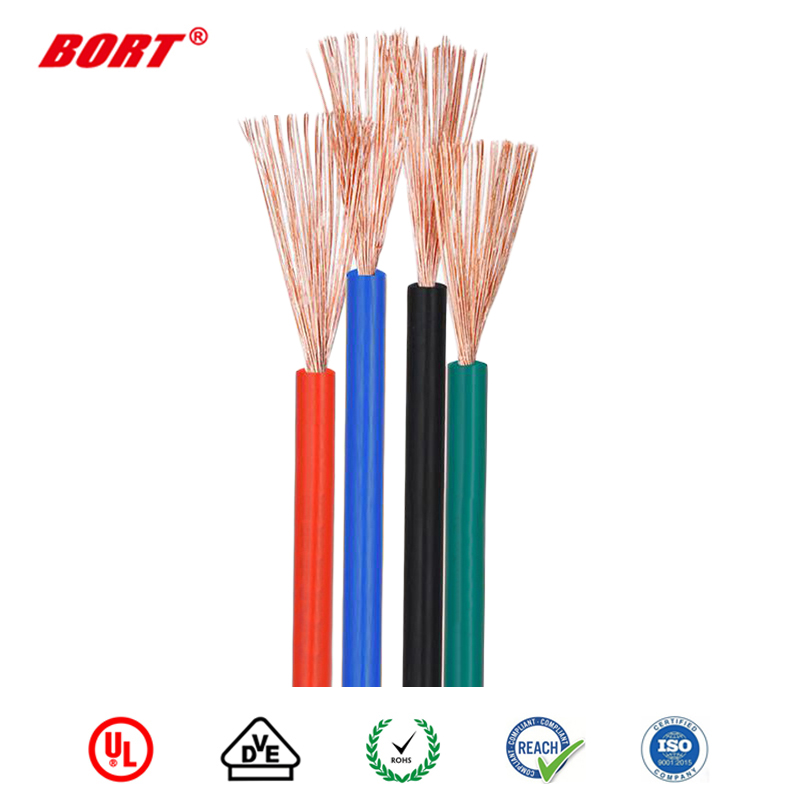

★ 用于汽车内部连线 具高柔软性 高机械强度 耐高温环境使用

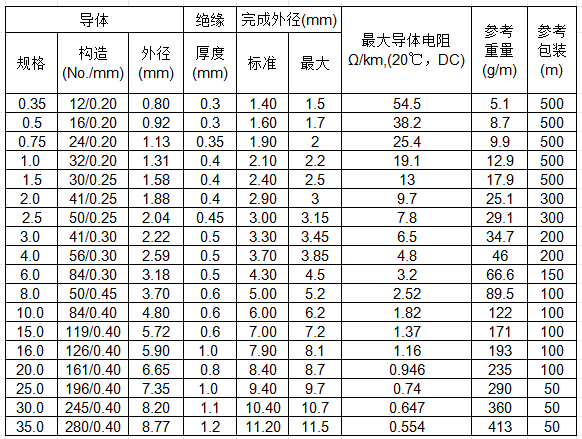

| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Diameter | Weight | |
| mm2 | No./mm | mm | mm | kg/km | Ω/km |
| 0.35 | 12/0.21 | 0.3 | 1.40 | 5.44 | 52.00 |
| 0.5 | 16/0.21 | 0.3 | 1.60 | 7.19 | 37.10 |
| 0.75 | 24/0.21 | 0.3 | 1.90 | 10.51 | 24.70 |
| 1 | 32/0.21 | 0.4 | 2.10 | 13.55 | 18.50 |
| 1.5 | 30/0.26 | 0.4 | 2.40 | 18.8 | 12.70 |
| 2.5 | 50/0.26 | 0.4 | 3.00 | 30.63 | 7.60 |
| 4 | 56/0.31 | 0.5 | 3.70 | 48.03 | 4.70 |
