产 品 说 明
★ 额定温度: 105℃
★ 额定电压：30V
★ 执行标准:UL758，UL1581，C22.2

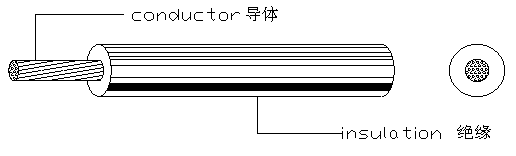

★ 导体使用单根或绞合镀锡或裸铜丝
★ 交联聚乙烯绝缘
★ 通过UL VW-1以及CSA FT1垂直燃烧测试
★ 绝缘厚度均匀 易剥 易裁
★ 用于一般电子，电器设备内部连线
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Diameter | Packing | |
| No./mm | mm | mm | m/r | Ω/km | |
| 30 | 7/0.1 | 0.16 | 0.56 | 1220 | 354.33 |
| 28 | 7/0.127 | 0.24 | 0.81 | 1220 | 223.75 |
| 26 | 7/0.16 | 0.30 | 1.10 | 610 | 139.76 |
