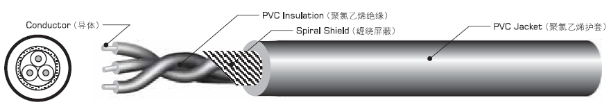

产品描述：
★额定温度：60℃或80℃
★额定电压：30V
★参考标准：UL Subject 758，UL1581
★绞合，镀锡或裸铜导体
★无铅聚氯乙烯绝缘
★通过UL VW-1垂直燃烧测试
★应用范围：用于2类系统设备和电子设备的内部或外部布线
| Cores | Stranded Conductor | Insulation | Drain Wire | Overall Shield | Jacket | Maximum Resistance at 20 ℃ Ω/km | |||||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | No./mm | Material | Spiral No./mm Braid No./No./mm | Nom. Thick. mm | Nom.Dia. mm | ||
| 2 | 30 | 7/0.1 | 0.30 | 0.25 | 0.80 | - | - | 45/0.1 | 0.50 | 2.70 | 354 |
| 2 | 28 | 19/0.08 | 0.40 | 0.15 | 0.70 | - | - | - | 0.40 | 2.20 | 220 |
| 4 | 30 | 7/0.1 | 0.30 | 0.25 | 0.80 | - | - | 59/0.1 | 0.39 | 2.90 | 354 |
| 4 | 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | - | AL | 16/5/0.12 | 0.87 | 5.00 | 139 |
| 8 | 30 | 7/0.1 | 0.30 | 0.13 | 0.56 | - | AL | 58/0.1 | 0.70 | 3.50 | 354 |
| 11 | 28 | 7/0.127 | 0.38 | 0.22 | 0.82 | 7/0.16 | AL | 16/7/0.12 | 0.60 | 5.20 | 223 |
| 11 | 28 | 7/0.127 | 0.38 | 0.14 | 0.66 | - | - | 16/6/0.12 | 0.38 | 3.65 | 223 |
| 13 | 28 | 7/0.127 | 0.38 | 0.14 | 0.66 | 7/0.127 | AL | 16/5/0.12 | 0.53 | 4.50 | 223 |
