产 品 说 明
★ 额定温度: 105℃
★ 额定电压： 300V
★ 执行标准:UL758，UL1581，C22.2

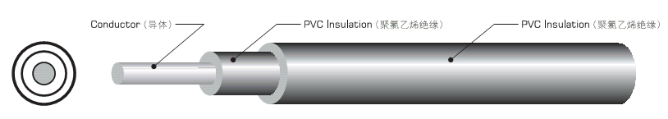

★ 导体使用单根或绞合镀锡或裸铜丝
★ 聚氯乙烯绝缘
★ 聚氯乙烯护套
★ 通过UL VW-1以及CSA FT1垂直燃烧测试
★ 绝缘厚度均匀 易剥 易裁
★ 用于电器设备内部连线
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| AWG | NO.of Cond | Insulation Thick. | Jacket Thick. | Packing | |
| mm | mm | mm | m/r | Ω/km | |
| 28 | 7/0.127 | 0.45 | 0.45 | 610.00 | 223.75 |
| 26 | 7/0.16 | 0.45 | 0.45 | 610.00 | 139.76 |
| 24 | 11/0.16 | 0.45 | 0.45 | 610.00 | 88.36 |
| 22 | 17/0.16 | 0.45 | 0.45 | 610.00 | 60.16 |
| 20 | 21/0.178 | 0.45 | 0.45 | 610.00 | 38.58 |
| 18 | 34/0.178 | 0.45 | 0.45 | 610.00 | 22.98 |
| 16 | 26/0.254 | 0.45 | 0.45 | 610.00 | 15.06 |
| 14 | 41/0.254 | 0.45 | 0.45 | 610.00 | 9.65 |
| 12 | 65/0.254 | 0.45 | 0.45 | 610.00 | 6.07 |
| 28 | 1/0.320 | 0.45 | 0.45 | 610.00 | 227.39 |
| 26 | 1/0.404 | 0.45 | 0.45 | 610.00 | 142.79 |
| 24 | 1/0.511 | 0.45 | 0.45 | 610.00 | 89.39 |
| 22 | 1/0.643 | 0.45 | 0.45 | 610.00 | 54.30 |
| 20 | 1/0.813 | 0.45 | 0.45 | 610.00 | 33.90 |
| 18 | 1/1.024 | 0.45 | 0.45 | 610.00 | 21.40 |
