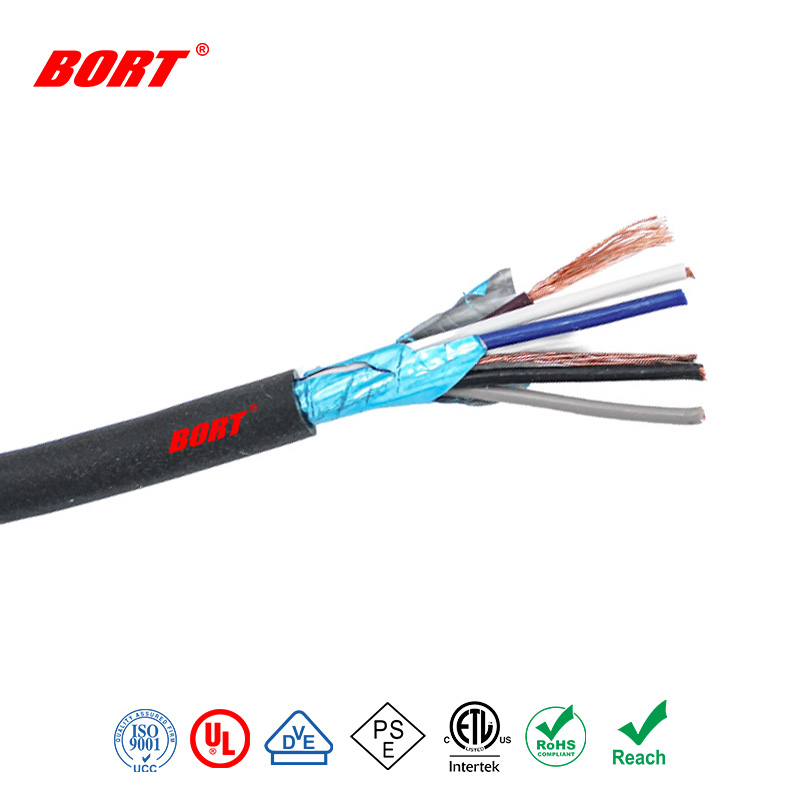

●Rated temperature: -40 to 80℃
●Rated voltage: 300V
●Solid or stranded, tinned or bare copper conductor
●Reference standard: UL758, UL1581, CSAC22.2N0.210.2
●PVC/SR-PVC insulation, comply with ROHS environmental standard
●TPU jacket, comply with ROHS environmental standard
●Uniform insulation thickness to ensure easy stripping and cutting
●Used for internal connection lines of industrial equipment and drag chain equipment
| CONDUCTOR | INSULATION | SHIELD | DRAIN | BRAID | JACKET | MAX . COND. RESISTANCE | Approx. Weight (g/m) | Standard packing (m) | |||||
| AWG | CONSTR- UCTION (No./mm) | DIA. (mm) | (No) | INSULATION THICKNESS (mm) | O.D. (mm) | CONSTRU- CTION | CONSTRU- CTION (No./mm) | CONSTRU- CTION (No./No./mm) | JACKET THICKNESS | O.D. | |||
| 26 | 7/0.16 | 0.48 | 2 | 0.25 | 1 | Al-mylar | / | 16/4/0.10 | 0.76 | 4.50 | 150 | 25 | 300 |
| 26 | 7/0.16 | 0.48 | 3 | 0.25 | 1 | Al-mylar | / | 16/4/0.10 | 0.76 | 4.60 | 150 | 28 | 300 |
| 26 | 7/0.16 | 0.48 | 4 | 0.25 | 1 | Al-mylar | / | 16/6/0.10 | 0.76 | 4.90 | 150 | 36 | 300 |
| 26 | 7/0.16 | 0.48 | 5 | 0.25 | 1 | Al-mylar | / | 16/6/0.10 | 0.76 | 5.20 | 150 | 44 | 200 |
| 24 | 11/0.16 | 0.62 | 24 | 0.25 | 1.15 | Al-mylar | / | 16/6/0.10 | 0.76 | 8.80 | 88.36 | 127 | 100 |
| 24 | 11/0.16 | 0.62 | 3 | 0.25 | 1.15 | Al-mylar | / | 16/4/0.10 | 0.76 | 4.60 | 88.36 | 32 | 300 |
| 24 | 11/0.16 | 0.62 | 4P | 0.25 | 1.15 | Al-mylar | / | 16/6/0.10 | 0.76 | 7.80 | 88.36 | 69 | 100 |
| 22 | 17/0.16 | 0.76 | 12 | 0.25 | 1.3 | Al-mylar | / | 16/6/0.10 | 0.76 | 7.50 | 60.16 | 101 | 100 |
| 20 | 26/0.16 | 0.94 | 3 | 0.25 | 1.5 | Al-mylar | / | 16/5/0.10 | 0.76 | 5.50 | 38.58 | 46 | 200 |
| 14 | 41/0.254 | 1.9 | 3 | 0.38 | 2.7 | Al-mylar | / | 16/6/0.10 | 0.76 | 8.20 | 9.59 | 119 | 100 |
| 10 | 65/0.254 | 3 | 3 | 0.38 | 3.8 | Al-mylar | / | 16/6/0.10 | 0.76 | 10.8 | 3.57 | 238 | 100 |
