Product Description:
★ Rated temperature:70℃
★ Rated voltage:300V
★ According to: DIN VDE 0281

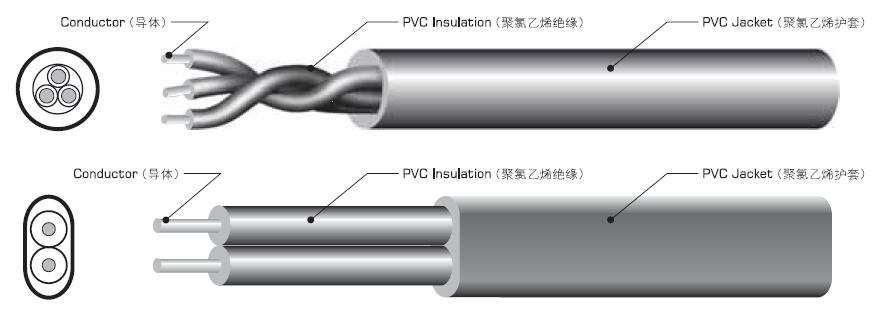

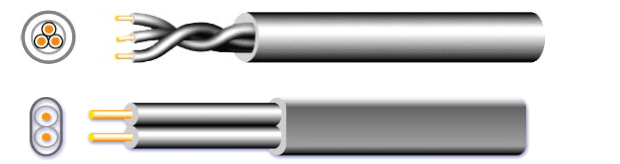

★ Stranded, bare copper conductor
★ Colour-coded lead free PVC insulation
★ Lead free PVC jacket
★ Application: Power supply wire, suitable for indoor small electrical instrument

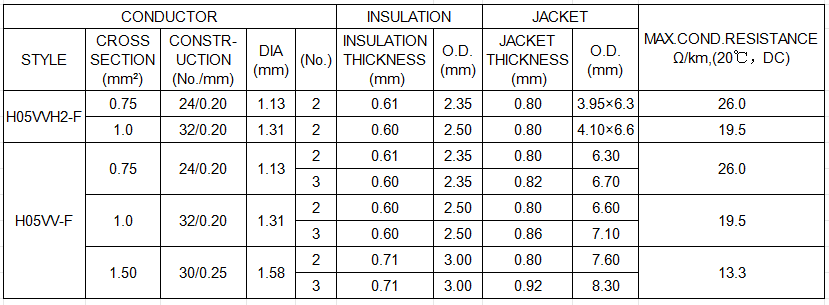

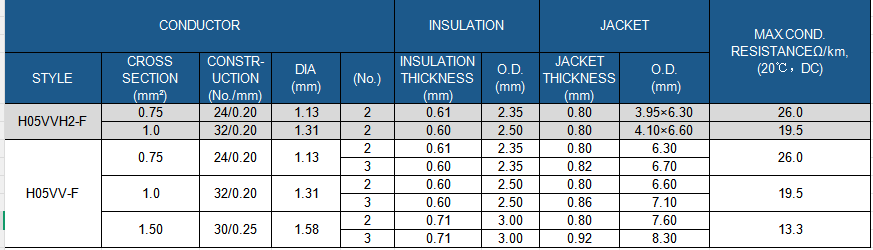

| AWG/No.of COND | Cores | Conductor | Insulation | Jacket | Maximum Resistance at 20℃ Ω/km | ||||
| Cross Section mm² | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |||
| H03VVH2-F | 2 | 0.75 | 42/0.147 | 1.10 | 0.54 | 2.17 | 0.63 | 3.55×5.60 | 26.00 |
| H05VV-F | 2 | 0.75 | 24/0.2 | 1.13 | 0.65 | 2.43 | 0.82 | 6.50 | 26.00 |
| H05VV-F | 3 | 0.75 | 30/0.177 | 1.11 | 0.62 | 2.35 | 1.07 | 7.25 | 26.00 |
