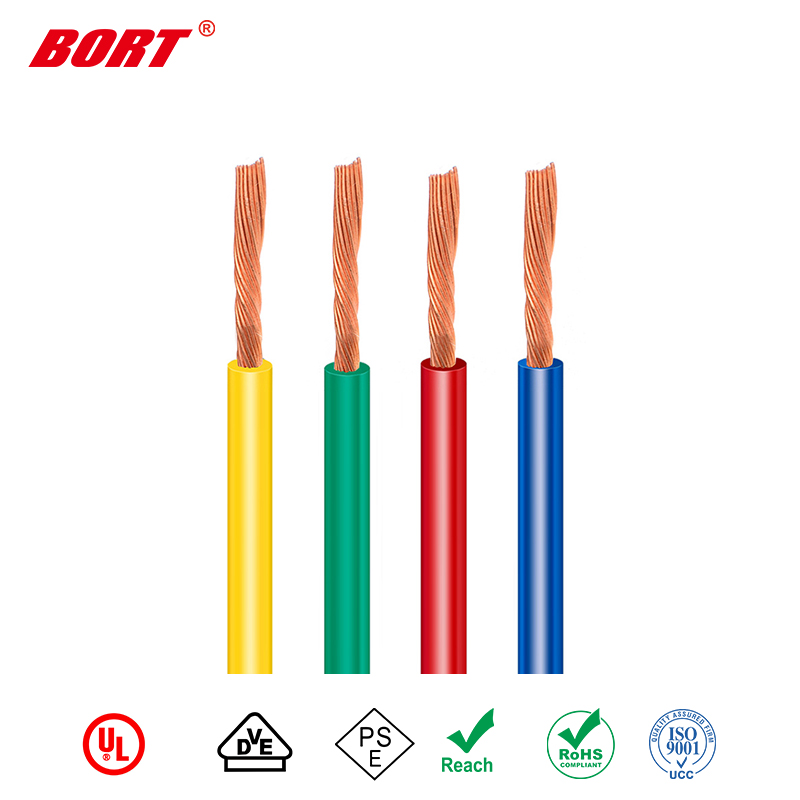

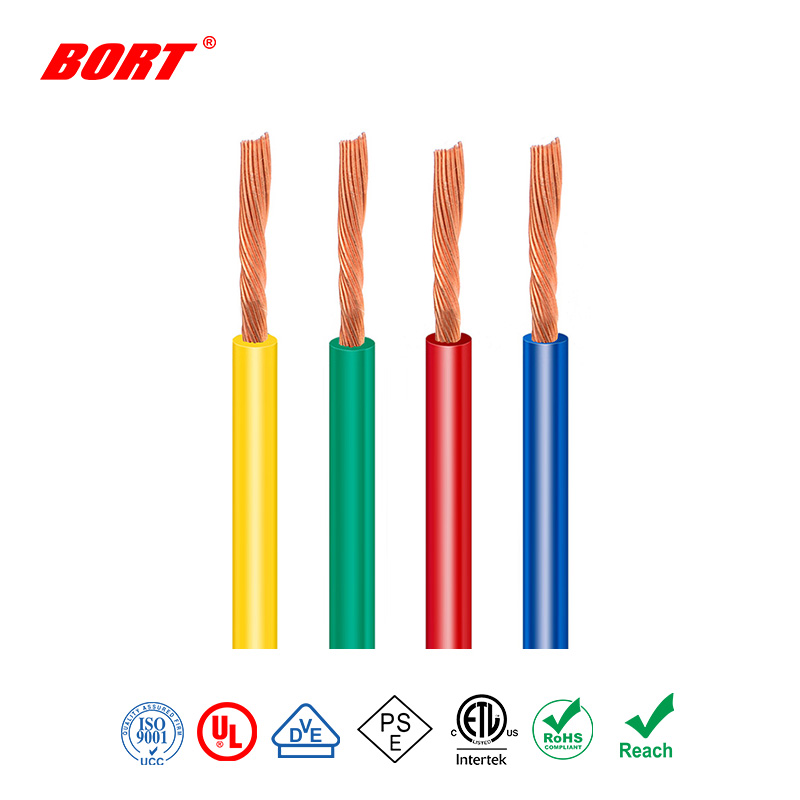

Product Description:
Rated temperature:125ºC
Rated voltage:60V DC or 25V AC
According to:SAE J1128
Solid or stranded,tinned or bare copper conductor 24--8AWG
XLPE insulation
Ground vehicles with low voltage electric system primary cable
| AWG | NO.of Cond | Conductor Dia(mm) | Insulation thickness | Overall Dia(mm) | |
| No./mm | Nom | Min | |||
| 8 | 168/0.254 | 3.8 | 0.55 | 0.39 | 4.90 |
| 10 | 105/0.254 | 3 | 0.50 | 0.35 | 4.00 |
| 12 | 65/0.254 | 2.4 | 0.45 | 0.32 | 3.30 |
| 14 | 41/0.254 | 1.9 | 0.40 | 0.28 | 2.70 |
| 16 | 26/0.254 | 1.5 | 0.40 | 0.28 | 2.40 |
| 18 | 16/0.254 | 1.2 | 0.40 | 0.28 | 2.20 |
| 18 | 19/0.235 | 1.18 | 0.40 | 0.28 | 2.20 |
| 20 | 7/0.32 | 0.96 | 0.40 | 0.28 | 1.90 |
