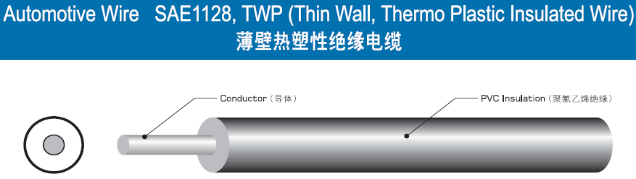

Product Description:
★ Reference Standard: SAE J 1128
★ Resistant to heat, oil, abrasion and cold
★ Excellent flexibility
★ Stranded copper conductor
★ Available in colours, stripes and ring marks
★ Verified by third party laboratory
★ Meet Lead and Cadmium free requirement
★ Application: Internal wiring in automobile and hardness where
high flexibility, thermo and mechanical strength are required
| AWG | Size mm² | Conductor | Insulation | Maximum Resistance at 20℃ Ω/km | ||
| No./mm | Nom. Dia. mm | Nom. Thick. mm | Nom. Dia. mm | |||
| 24 | 0.22 | 7/.019 | 0.6 | 0.4 | 1.5 | 88.9 |
| 22 | 0.35 | 7/.026 | 0.8 | 0.4 | 1.7 | 50.2 |
| 20 | 0.50 | 7/.032 | 1.0 | 0.4 | 1.9 | 32.7 |
| 18 | 0.80 | 19/0.23 | 1.2 | 0.4 | 2.2 | 24.4 |
| 16 | 1.00 | 19/0.28 | 1.4 | 0.4 | 2.4 | 14.3 |
| 14 | 2.00 | 19/0.35 | 1.8 | 0.4 | 2.7 | 8.8 |
