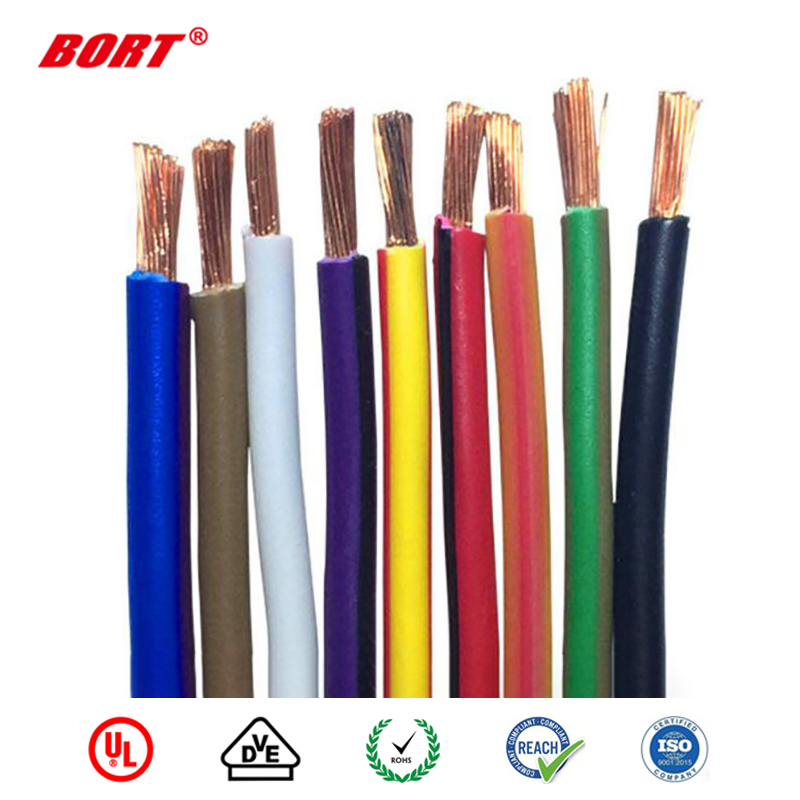

PRODUCT DESCRIPTION
★Rated temperature:70℃
★According to JASO D 611-94

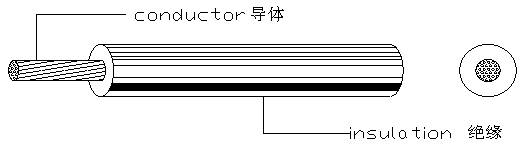

★Stranded,tinned or bare copper conductor
★PVC insulation
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Resistant to oil and abrasion
★Interal wiring in autmobile where high flexibility
thermo and mechanical strength are required
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Diameter | Weight | |
| mm2 | No./mm | mm | mm | kg/km | Ω/km |
| 0.3 | 7/0.26 | 0.3 | 1.4 | 5.1 | 50.20 |
| 0.5 | 7/0.32 | 0.3 | 1.6 | 7.25 | 32.70 |
| 0.85 | 19.0.24 | 0.3 | 1.8 | 10.3 | 21.70 |
| 0.85 | 7/0.4 | 0.3 | 1.8 | 10.45 | 20.80 |
| 1.25 | 19/0.29 | 0.3 | 2.1 | 14.66 | 14.90 |
| 2 | 19/0.37 | 0.4 | 2.7 | 24.0 | 9.00 |
| 0.3F | 19/0.16 | 0.3 | 1.4 | 5.18 | 48.80 |
| 0.5F | 19/0.19 | 0.3 | 1.6 | 7.07 | 34.60 |
| 0.75F | 19/0.23 | 0.3 | 1.8 | 9.76 | 23.60 |
| 1.25F | 37/0.21 | 0.3 | 2.1 | 14.86 | 14.60 |
| 2F | 37/0.26 | 0.4 | 2.6 | 22.78 | 9.50 |
| Note: The "F" in the table indicates that the conductor is a soft structure | |||||
