PRODUCT DESCRIPTION
★Rated temperature:105℃
★Rated voltage:30V
★According to:UL Subject758,UL1581,C22.2

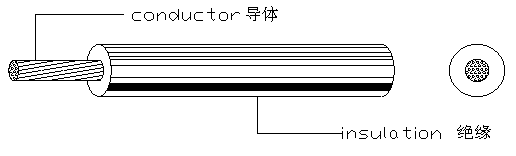

★Solid or stranded,tinned or bare copper conductor
★XLPE insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Diameter | Packing | |
| No./mm | mm | mm | m/r | Ω/km | |
| 30 | 7/0.1 | 0.16 | 0.56 | 1220 | 354.33 |
| 28 | 7/0.127 | 0.24 | 0.81 | 1220 | 223.75 |
| 26 | 7/0.16 | 0.30 | 1.10 | 610 | 139.76 |
