Product Description:
★Rated temperature:80℃
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

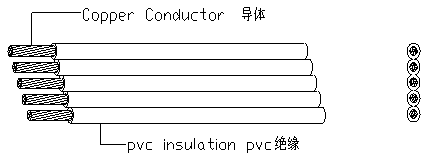

★Solid or stranded,tinned or bare copper conductor 32--16AWG
★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance
| Cores | Finished Products | Maximum Resistance at 20℃ | |||
| AWG/NO.OFCOND | Cond No. | Insulation Avg. Thick. | Outside Dia. | Packing | |
| /mm | mm | mm | m/r | Ω/km | |
| 30×2C | 7/0.1 | 0.45 | 1.20×2.50 | 610 | 354.33 |
| 28×2C | 7/0.127 | 0.45 | 1.30×2.70 | 610 | 223.75 |
| 26×2C | 7/0.16 | 0.45 | 1.40×2.90 | 610 | 139.76 |
| 24×2C | 11/0.16 | 0.45 | 1.50×3.10 | 610 | 88.36 |
| 22×2C | 17/0.16 | 0.45 | 1.70×3.50 | 610 | 60.16 |
| 20×2C | 21/0.178 | 0.45 | 1.90×3.90 | 305 | 38.58 |
| 18×2C | 34/0.178 | 0.45 | 2.10×4.30 | 305 | 22.98 |
| 16×2C | 26/0.254 | 0.45 | 2.40×4.90 | 305 | 15.06 |
