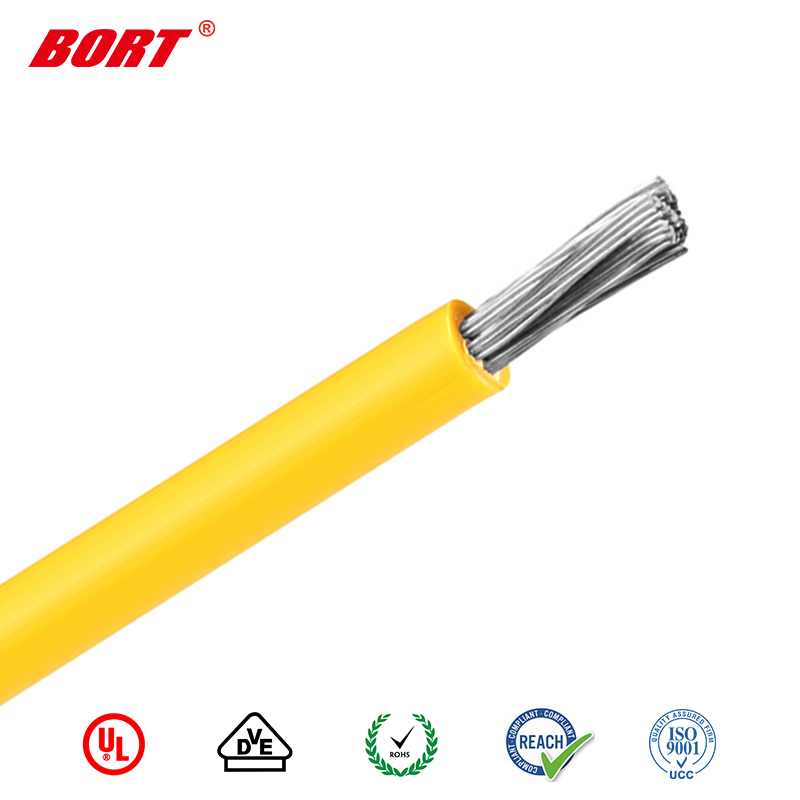

Product Description:
★Rated temperature:105℃
★Rated voltage:600V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 30--2/0AWG
★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance

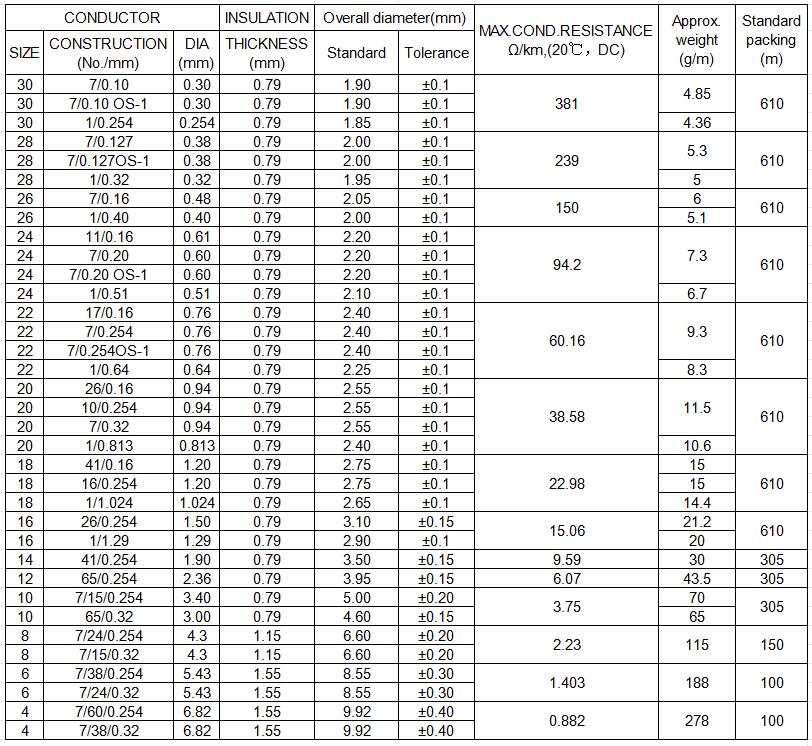

| Conductor | Finished product | Maximum Resistance at 20℃ | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/km | |
| 30 | 7/0.1 | 0.79 | 1.90 | 610 | 354.33 |
| 28 | 7/0.127 | 0.79 | 2.00 | 610 | 223.75 |
| 26 | 7/0.16 | 0.79 | 2.05 | 610 | 139.76 |
| 24 | 11/0.16 | 0.79 | 2.20 | 610 | 88.36 |
| 22 | 17/0.16 | 0.79 | 2.40 | 610 | 60.16 |
| 20 | 21/0.178 | 0.79 | 2.55 | 610 | 38.58 |
| 18 | 34/0.178 | 0.79 | 2.75 | 610 | 22.98 |
| 16 | 26/0.254 | 0.79 | 3.10 | 305 | 15.06 |
| 14 | 41/0.254 | 0.79 | 3.50 | 305 | 9.65 |
| 12 | 65/0.254 | 0.79 | 3.95 | 305 | 6.07 |
| 10 | 65/0.320 | 0.79 | 5.00 | 305 | 3.73 |
| 8 | 55/0.45 | 1.20 | 6.50 | 305 | 2.23 |
| 26 | 1/0.404 | 0.79 | 2.00 | 610 | 142.79 |
| 24 | 1/0.511 | 0.79 | 2.10 | 610 | 89.39 |
| 22 | 1/0.643 | 0.79 | 2.25 | 610 | 54.30 |
| 20 | 1/0.813 | 0.79 | 2.40 | 610 | 33.90 |
| 18 | 1/1.024 | 0.79 | 2.65 | 610 | 21.40 |
