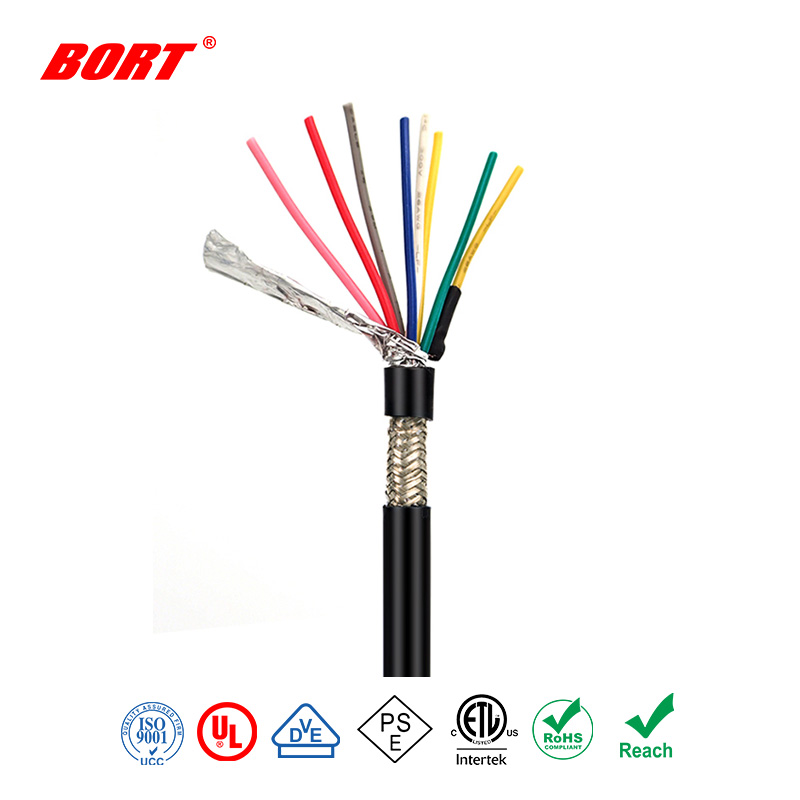

UL-2464

UL-2464




   Product Description:

★Rated temperature:80℃

★Rated voltage:300V

★According to:UL Subject758,UL1581,C22.2

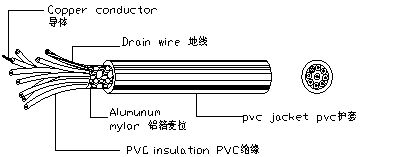

★Solid or stranded,tinned or bare copper conductor

★PVC insulation

★Cores cabled under AL-MYLAR shield

★Tinned or bare stranded copper drain wire

★Tinned or bare stranded copper wire overall more than 80% coverage braided shield

★PVC jacket

★Passes UL VW-1&CSA FT1 vertical flame test

★Uniform insulation thickness of wire to ensure easy stripping and cutting

★Sound broadcast,audio,instrumentation & computer
